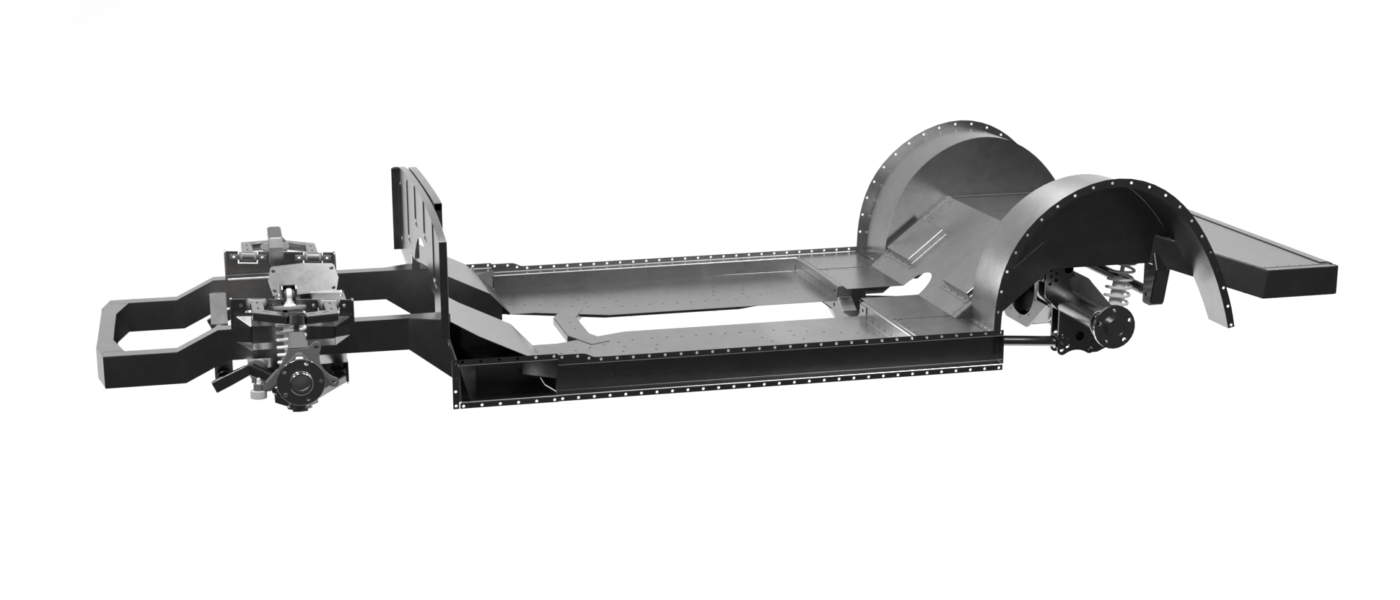

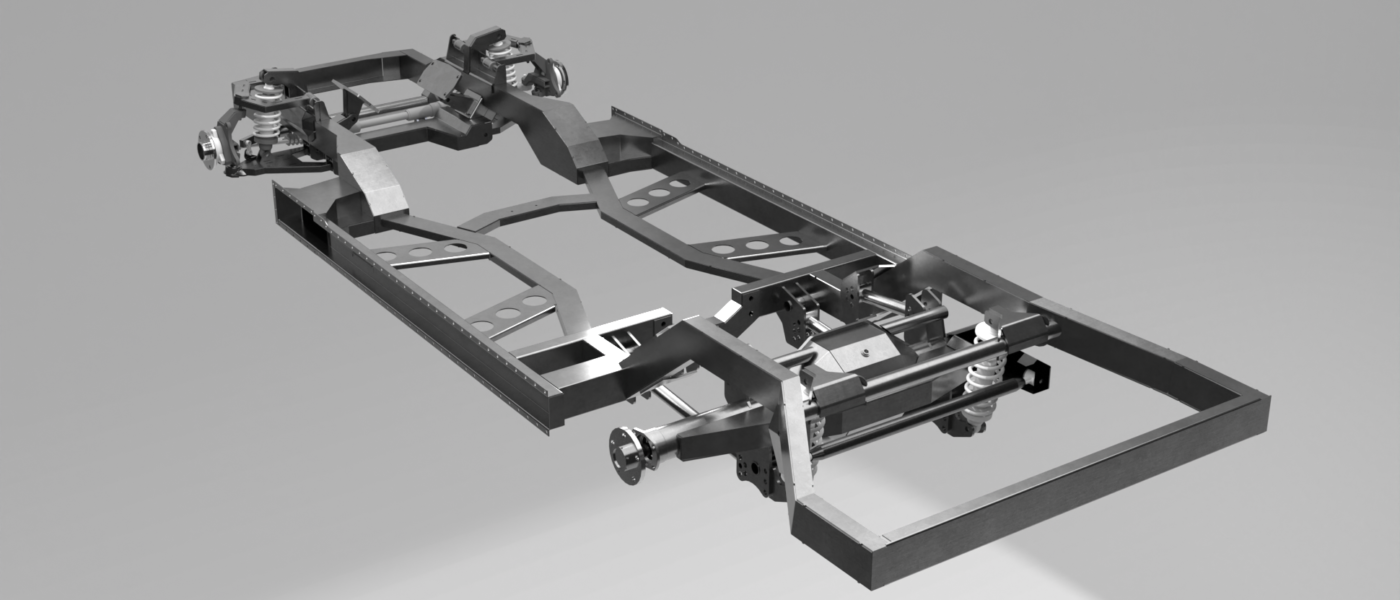

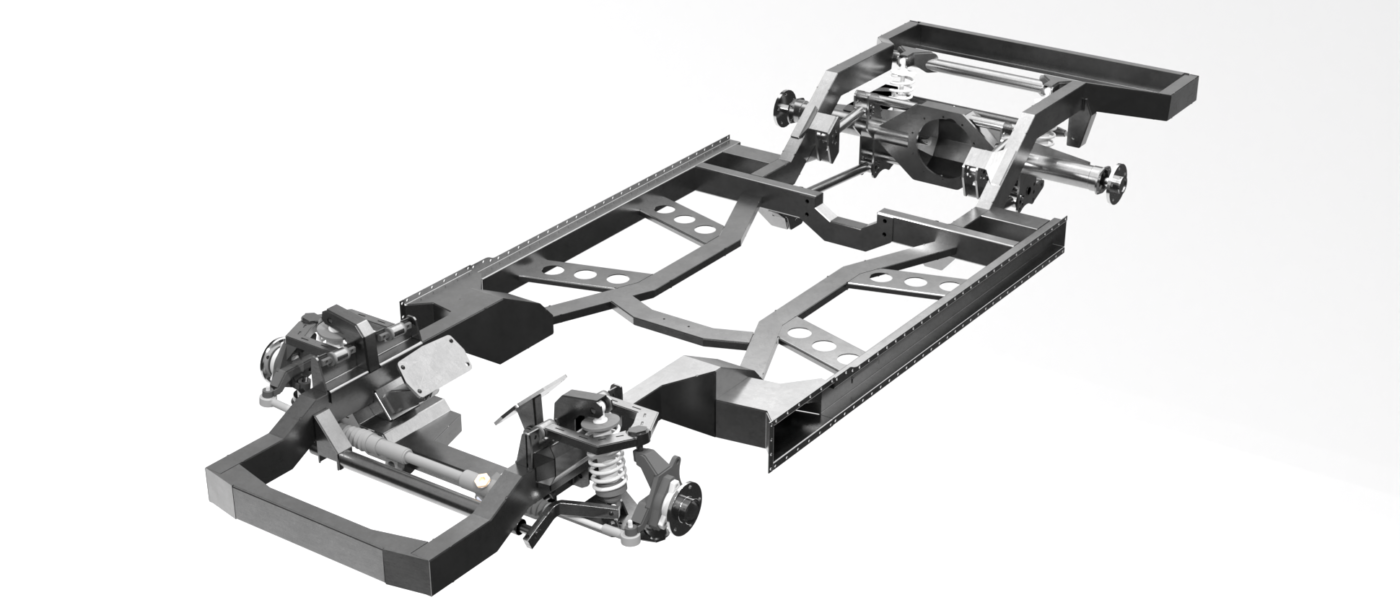

Our 65-70 Mustang Pro Chassis is designed to take your mustang’s strength, stiffness, handling capabilities, and sense of style/craftsmanship to levels unachievable by conventional performance upgrades.

This chassis frame rails feature a fully TIG welded construction fabricated from 10ga steel, with 3/16 and 1/4 inch added and placed strategically in areas where maximum strength is required around suspension/motor mount points. The front end has a 58″ track width hub-hub, and draws parallels to the mustang II platform geometry wise. It includes knuckles that accept C7 style wheel hubs and corvette brakes, as well as our own custom fabricated control arms. In the rear we use a parallel 4-link setup with adjustable mounting points for you to tune for your specific application, combined with a truss-reinforced 9 inch housing built with 3.5″ OD .25 wall DOM axle tubes, a thick 3/8″ face plate, and Torino style housing ends. All included mounting hardware is grade 8.

Information regarding the Mustang Pro Chassis installation process can be attained by contacting us.

***NOTES***

The Base Chassis Kit Includes:

• 65/70 Mustang Pro Frame
• Boxed steel control arms (screw-in ball joints)
• C7 wheel hubs (5×4.5 and 5×4.75 bolt patterns)
• CPP Mustang II Corvette Style Spindles
• 34″ long 1.75″ OD splined sway bar
• Sway bar arms
• Manual steering column
• Motor Mounts (Coyote by default)
• Adjustable 4 link (adjustable bushing ends and mounting points)
• Ford 9″ housing
• 4140 Forged Chromoly Axles
• AFCO Non Adjustable Coilovers
• Sheet Metal Kit
• Installation

The Base Chassis Price Does Not Include:

• Brake Line
• Exhaust
• Fuel Tank
• 3rd Member
• Brakes
